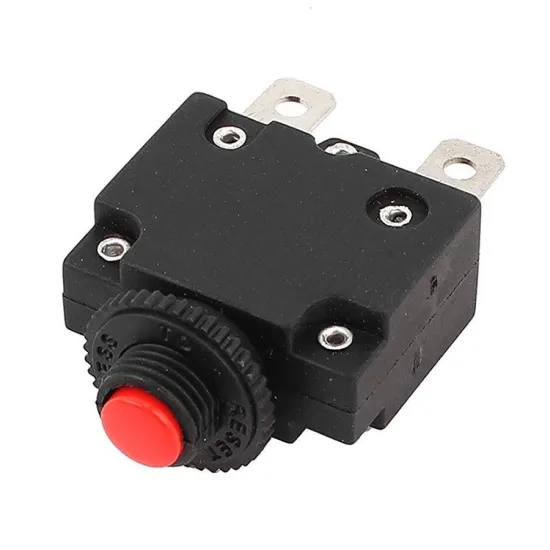

20A 32VDC Black Overload Protector Bakelite Miniature Circuit Breaker

Brand Name : CHIMAI

Model Number : ST-1

Certification : CE, CQC, SGS

Place of Origin : CHINA

Delivery Time : 5-8 work days

Packaging Details : inner box and plastic bag

Type : Circuit Breaker

Button Color : Black/Red

Material : Plastic/Bakelite

Electrical Life : 100,000 cycles

Voltage : 125/250VAC/32VDC

Contact Now

20A 32VDC Black Overload Protector Bakelite Miniature Circuit Breaker




The circuit breaker oill trip if there is over-current the reset button current iump upwad and cut off the ciucuit after fault is elimin ated push the reset button aod monnect the circuit again.

Advantage
--------------------------


NO.1 Good quality!
NO.2 10 years manature!
NO.3 Many types of circuit breaker switch we can supply
NO.4 High quality, competitive price, great service!
NO.5 The best indicator light at the best price!



The Basic Technical Parameters
---------------------------------------------------------------------------------


Working Voltage Min. 12V, Max. 125V
Double Usage DC & AC
Current 3A, 5A, 7A, 8A, 10A, 13A, 15A, 20A, 25A
Insulated Resistance >=100MΩ
Dielectric Strength >=1500VAC/1 min
Electrical Life >=10000 cycles




Main Technical Parameters
--------------------------------------------------------


Experimental Current Starting Condition Experimental Time Expect Result
1In Cold Start 1h Not Trip
1.5In Followed The Experiment t<=1h Trip
2In Cold Start (t1)2s≤t≤60s(t2) Trip
6In Cold Start (t3)0.1s≤t≤2ss(t4) Trip
10In Cold Start (t5)0.02s≤t≤0.5s(t6) Trip




PRODUCT SHOW
-----------------------------------------

20A 32VDC Black Overload Protector Bakelite Miniature Circuit Breaker
